Application
Powder, liquid, cream and granule
like sugar, coffee packed in a long narrow pouch. Packing for different materials can be accomplished by different dosing unit.
Standard Features

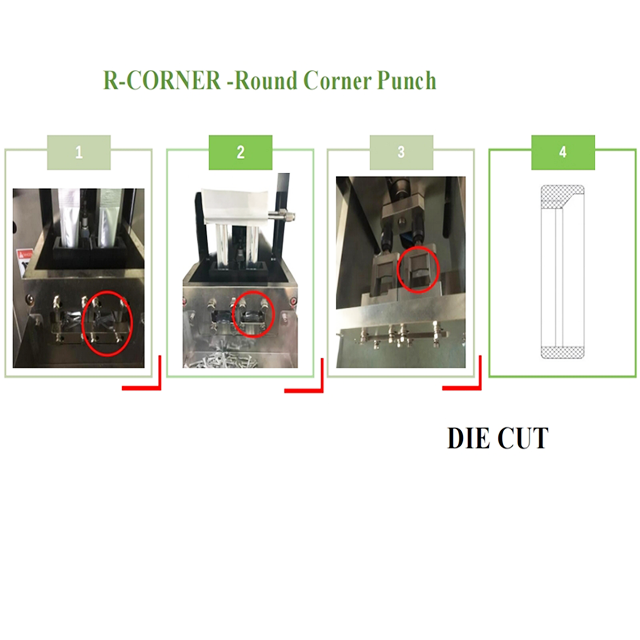

1.The machine can automatically complete multi-lane products measuring, feeding, filling and bag forming, date code printing, bag sealing and cutting. And hole punching as option.
2. Inverter motor driven heat seal film pulling system
3.High sensitive fiber optic photo sensor can automatically trace color mark accurately.
4. PLC control, can easily be set on the touch screen console, adjust the packing parameters. Visual display production information, and with self-alarm, self-stop, self-diagnostic function, the use of safe, easy maintenance;
5.PlD temperature controller monitors heat sealing temperaturewithin +1℃

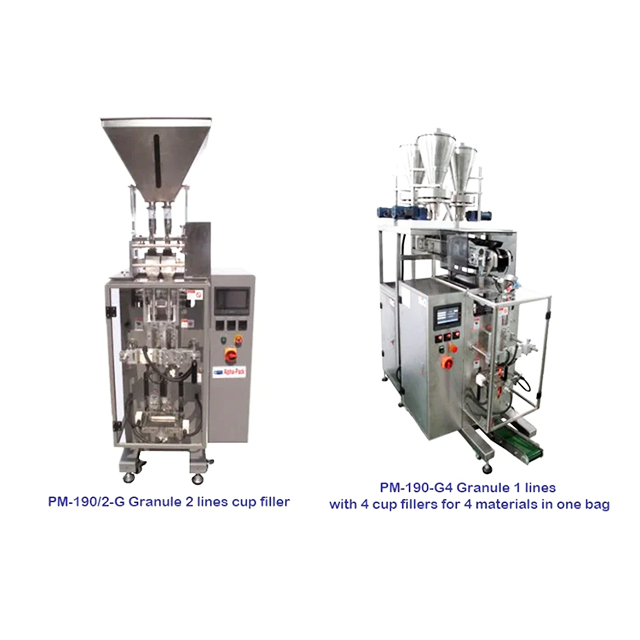

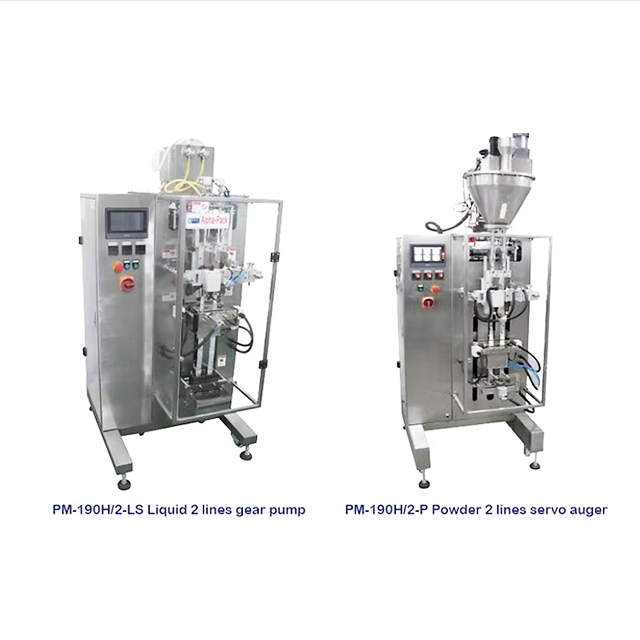

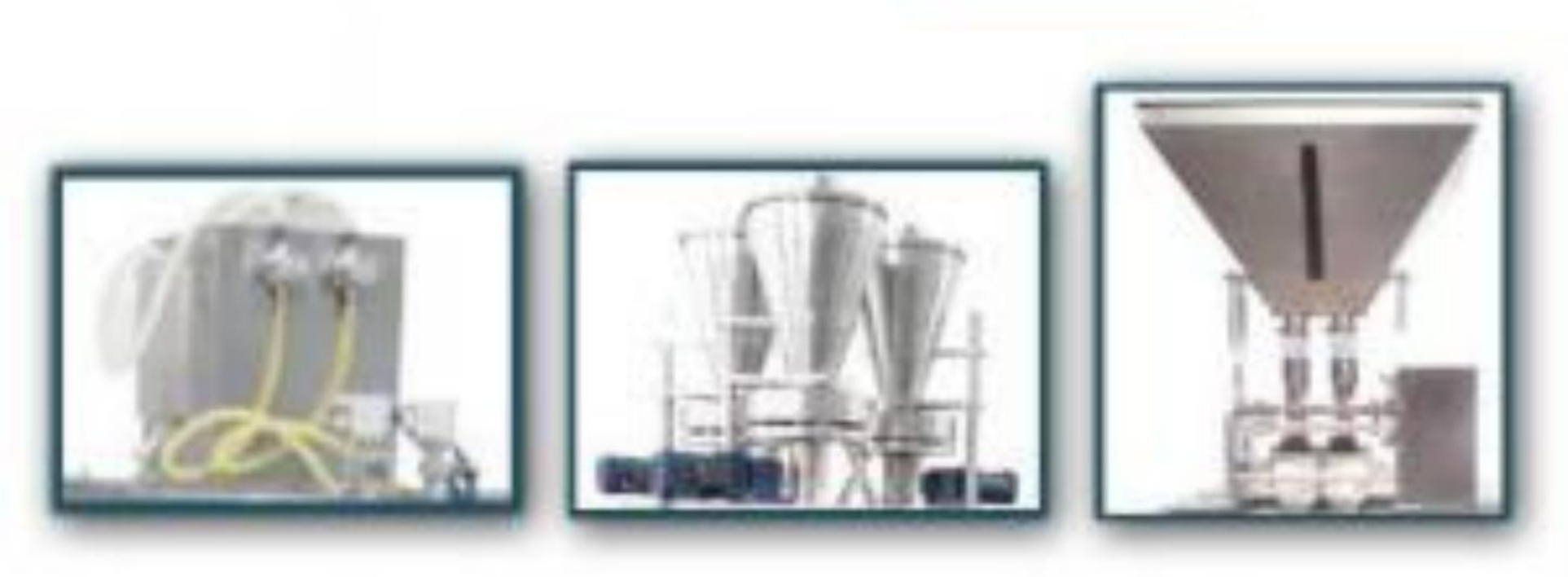

Liquid 2 lines gear pump Granule 4 Cup Filler for 4 materials in one bag Granule Double Lane Swing Filler

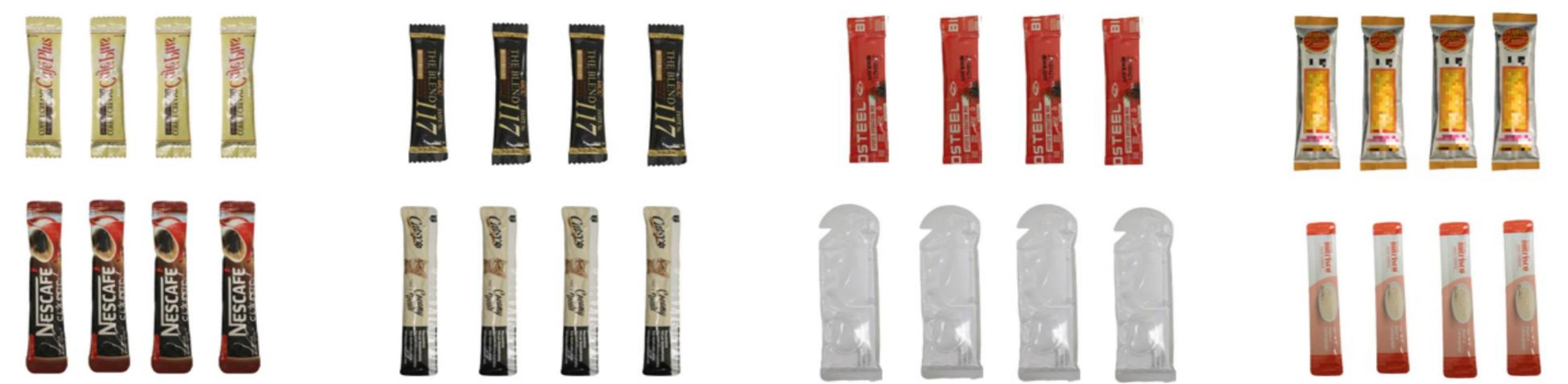

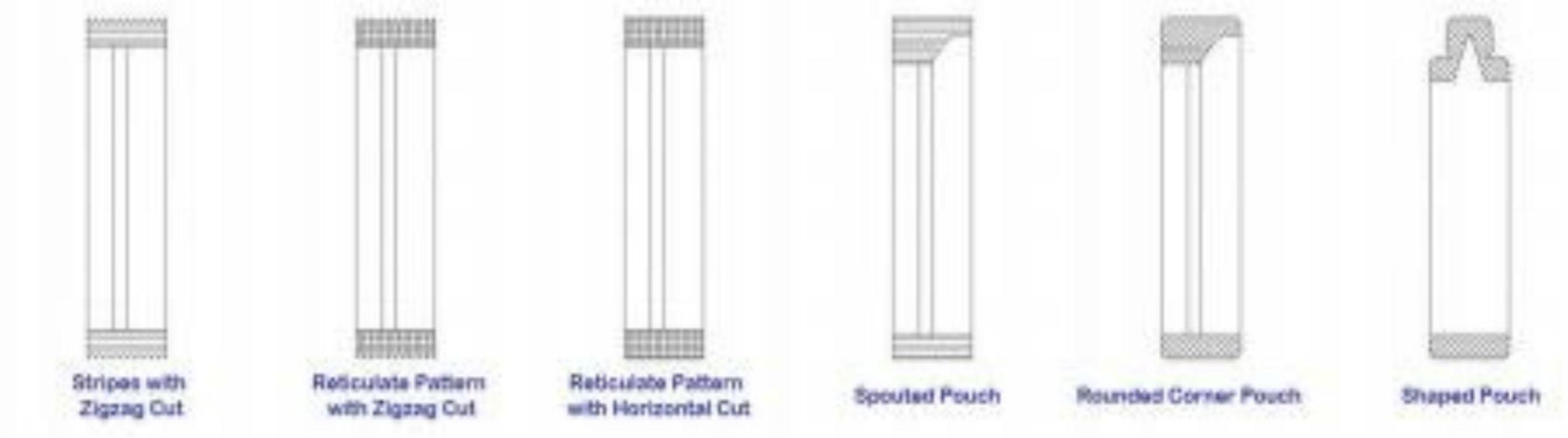

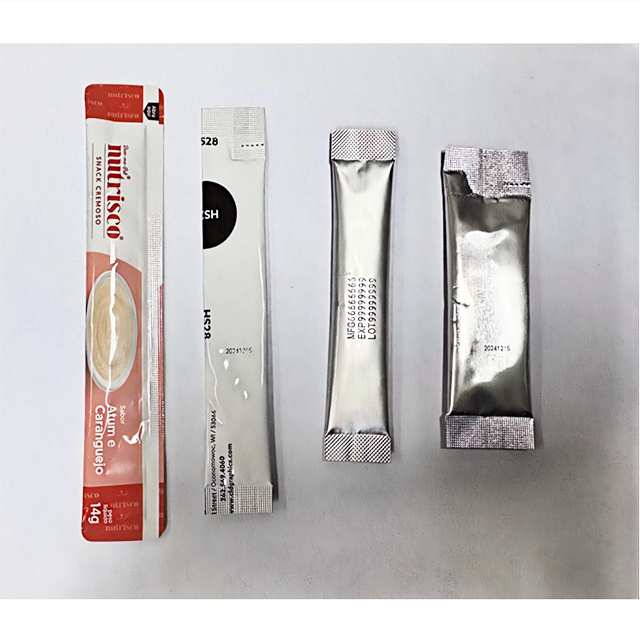

Available pouch patterns format
Technical Specification
Model | PM-190H |
|
Bag Length | 70-200 | |
Bag Width | 16-90 | 14-40*2 |
Film Width | Max. 190 | |
Speed(bags/min) | 20-75 | 40- 100 |
Mumber ofLane | 1 | 2 |
Sealing and cutting | In two Layers | |
