Application

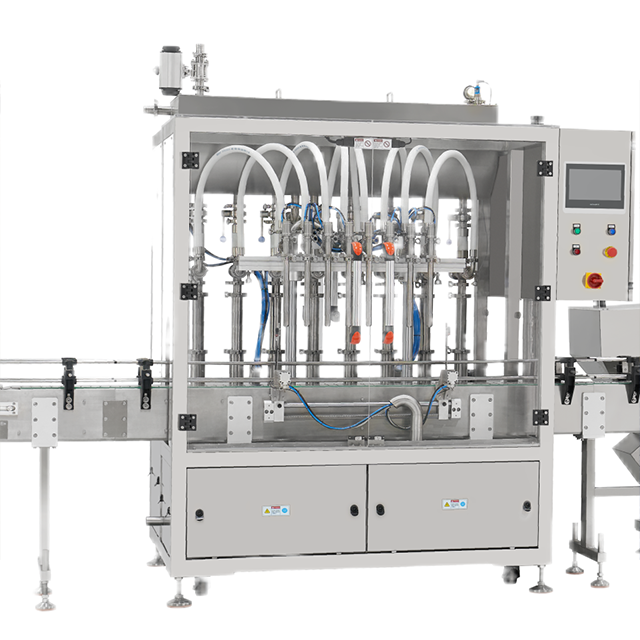

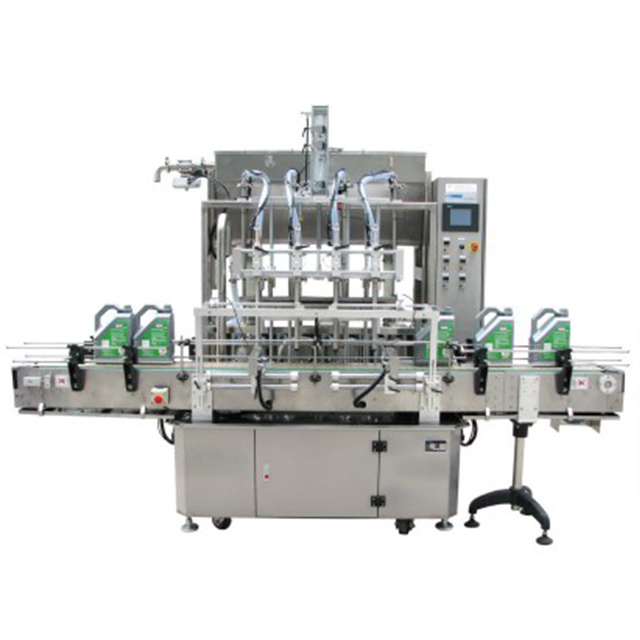

Automatic Servo Driven Piston Pump Filling Machine AFLS-840 AFLS-860 AFLS-880.
They are suitable for filling low-viscosity and medium-viscosity liquid.
Widely used in chemical industry, medicine, pesticide, cosmetics, food or other fields.
Standard Features

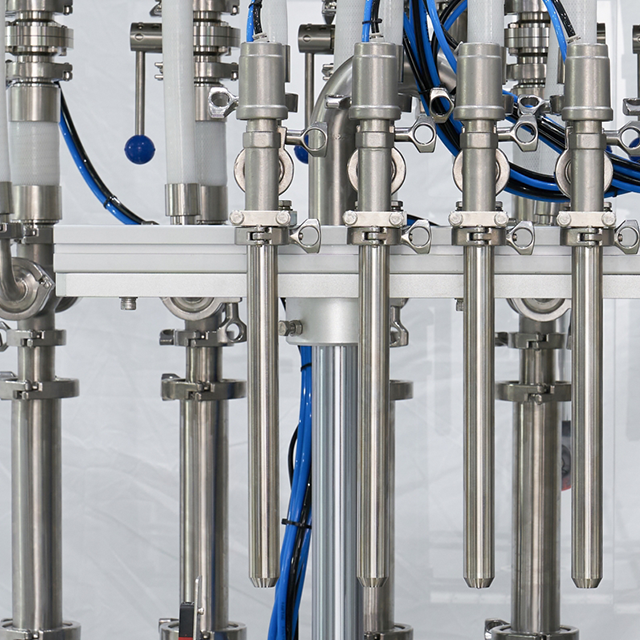

1. All piston pumps driven by bus Servo including the rising filling nozzles
2. 304SS framing, 316L SS directly contact parts
3. Different O-ring for different product
4. Large motion control PLC + 10" touch screen
5. Individual adjustable filling nozzle on HMI, easy operation and high accuracy, 100 groups of recipe
6. No extra parts needed for different container sizes.
7. No container no filling function
8. Multiple filling times function
Technical Specification
Model | APFL-840S | APFL-860S | APFL-880S |
Filling capacity | 100ml-20L(Max. single filling bolume 2000ml,Max. filling times : 10(Max. filling volume 20L) | ||
Power | 220V, 1PH, 50/60HZ | ||
Filling error | ± 0.5% | ||
Filling method | Servo driven piston | ||
Number of filling heads | 4 | 6 | 8 |
Production speed | 4-60BPM(depend on the product) | 8-90BPM(depend on the product) | 10-120BPM(depend on the product) |
Air pressure | 0.6Mpa | ||
