Application

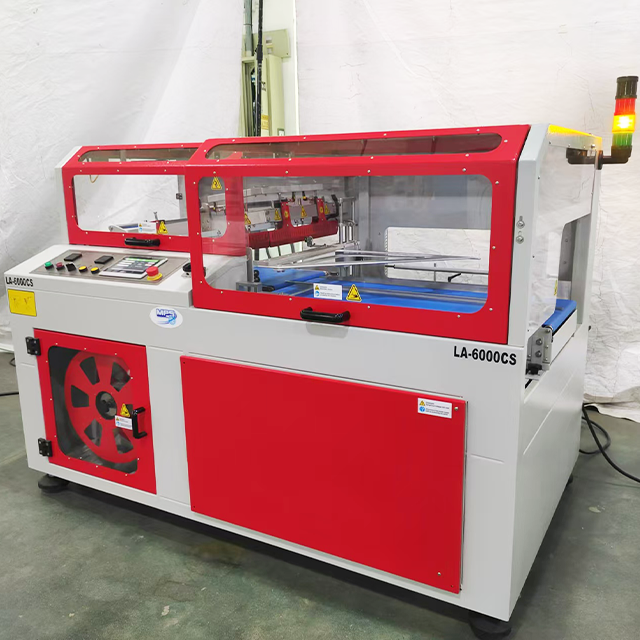

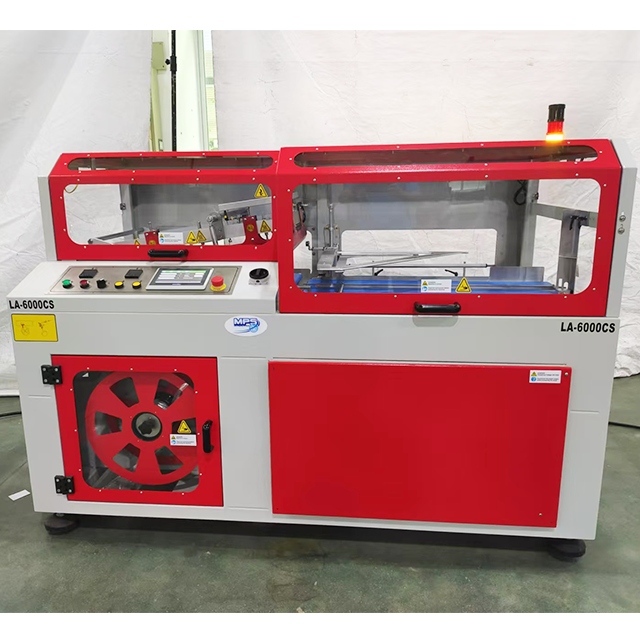

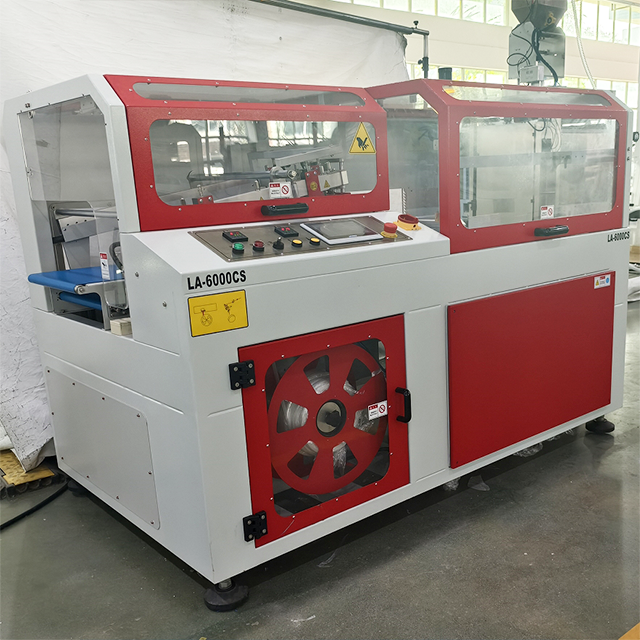

LA-6000CS Packing film requirement: Polyolefin, polyethylene micro perforated film(PE), thickness from 10 to 50u. (Note: single layer PE is not applicable.)
Possibility of packing single packs or muitipacks,Suitable for packaging of various regular and irregular products, such as daily necessities, electronic products, vegetables, fruits, etc.
Standard Features
1. Motorized center seal system as standard (Only for CS model)
2. Piece counter, batch production setting possible
3. Measurement of the pack length
4. Real-time output
5. Control of irregular packs
6. Reduced power consumption
7.Compliance with CE regulations
8.Possibility of storing up to 10 different operation programs
9.Automatic control of the sealing bar height (Only for CS model)
10.Double adjustment of the sealing blade temperature, both length-ways and broadways
11.Speed of conveyors electronically adjustable from the control panel
Technical Specification
Model | LA-6000 | LA-6000CS | LA-5000 |
Power supply | 220V/1PH/50HZ/3000W | 220V/1PH/50HZ/3200W | 220V/1PH/50HZ/2800W |
Air Supply | 6 bar/ 90L per min. | 6 bar/ 90L per min. | 6 bar/60L per min. |
Sealing bar Dimension | 610 x 480 mm | 610 x 480 mm | 480 x 420 mm |
Maximum pack height | 120mm | 200 mm | 80mm |
Speed of conveyors | 30m per min | 30m per min | 30m per min |
Average output per hour | 45 ppm | 45 ppm | 45 ppm |
Center seal function | N0 | Yes | N0 |
Machine size (LxWxH)(mm) | 2040 x 1550 x 1650 | 2040 x 1550 x 1650 | 1300 x 1450 x 1650 |
Packed machine size (LxWxH)(mm) | 2160 x 1730 x 1620 | 2160 x 1730 x 1620 | 1420x 1630 x 1620 |
Machine weight (NW/GW)(Kg) | 580/750kg | 610/ 780 kg | 390/500kg |
