Application

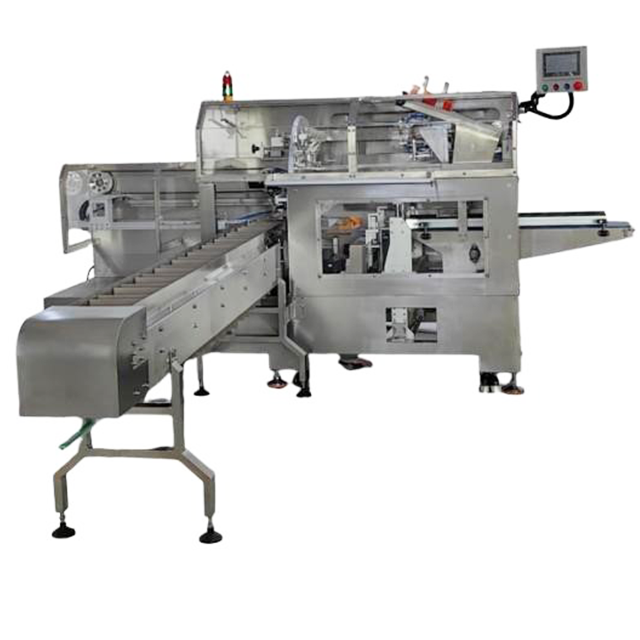

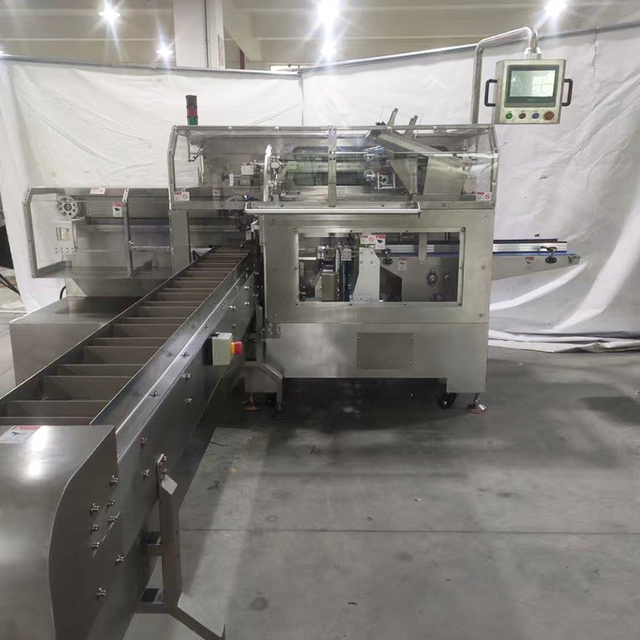

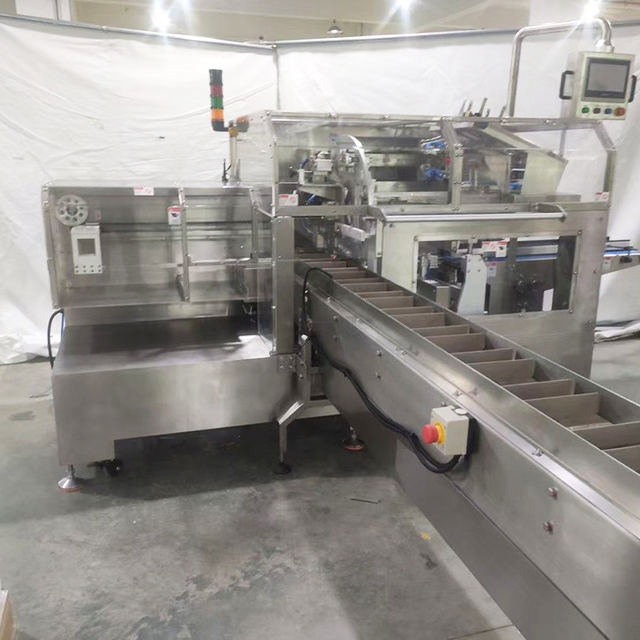

APTD-150/200: This machine is suitable for all kinds of premade bagging with solid products packing and especially for side gusset bag. Fully automatic bag feeding and opening, automatic product pushing, automatic sealing and feeding out. It is compact and uniform design.
Standard Features
1. Fully automatic bag feeding and opening, automatic product pushing, automatic sealing and feeding out.
2.Suitable for all kinds of premade bagging with solid products packing and especially for side gusset bag. It is compact and uniform design.
3. Servo motor driven control system, User friendly HMI operation panel, Easy operation and maintenance.
4.With indexing products feeding conveyor, can be connected with automatic production line. High efficiency and labor saving.
5.Automatic photocell detection, servo motor motion control, No bag no product feeding, Bag opening fault no product feeding, Saving packing bag and higher yield.
6. #304 stainless steel construction suitable for food industrial.
7. High degree of automation, strong professionalism, high production efficiency and low failure rate.
Technical Specification
Model | APTD-150 | APTD-200 |
Wrapping Speed | 25-30bags/Min with sealing, 35 bags/Min without sealing | 20-30bags/Min with sealing, 30-35 bags/Min without sealing |
Compress Air | 0.6～0.8MPA | 0.6～0.8MPA |
Suitable Bag Size | Length:200-250mm,Width:120- 150mm,Height:0-30mm | Length:170-300mm,Width:130- 190mm,Height:0-50mm |
Power | Length:170-300mm,Width:130- 190mm,Height:0-50mm | 7KW with sealing, 5.8KW without sealing |
Voltage | 220V,1PH 50HZ | 220V,1PH 50HZ |
Product Type | One piece in one bag or multiple products arranged in one bag | One piece in one bag or multiple products arranged in one bag |
Overall Dimension | 2588x2523x1992mm（L×W×H） | 3015×3530×1513mm（L×W×H） |
Bag Materials | OPP/CPP/PE laminated film,thickness:45～60μm | OPP/CPP/PE laminated film,thickness:45～60μm |
Machine Net Weight | About 450KG | About 500KG |
