Application

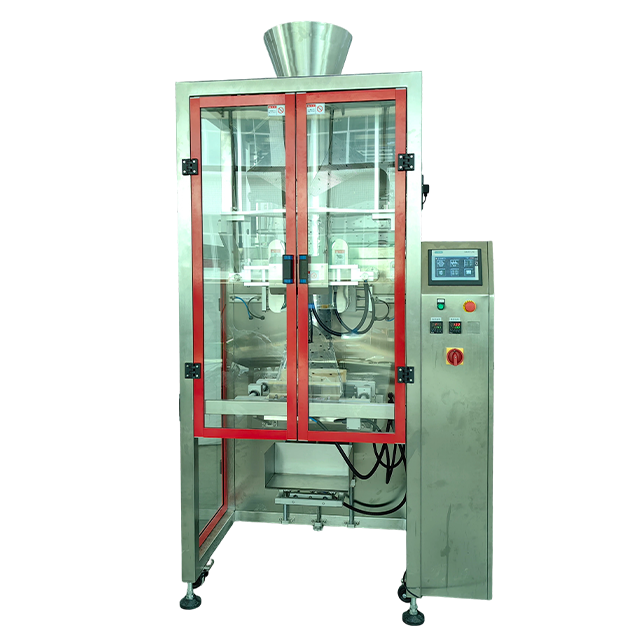

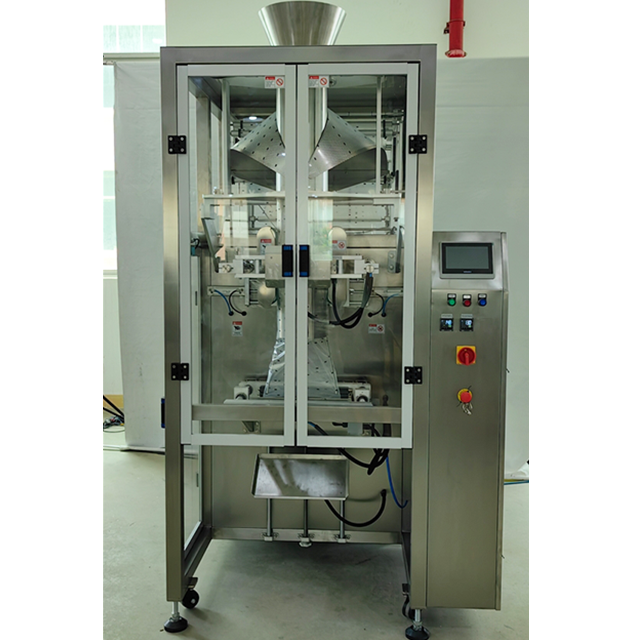

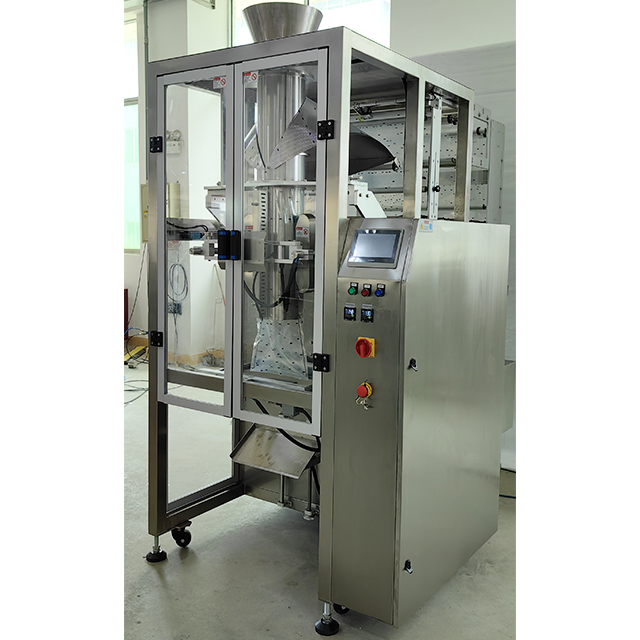

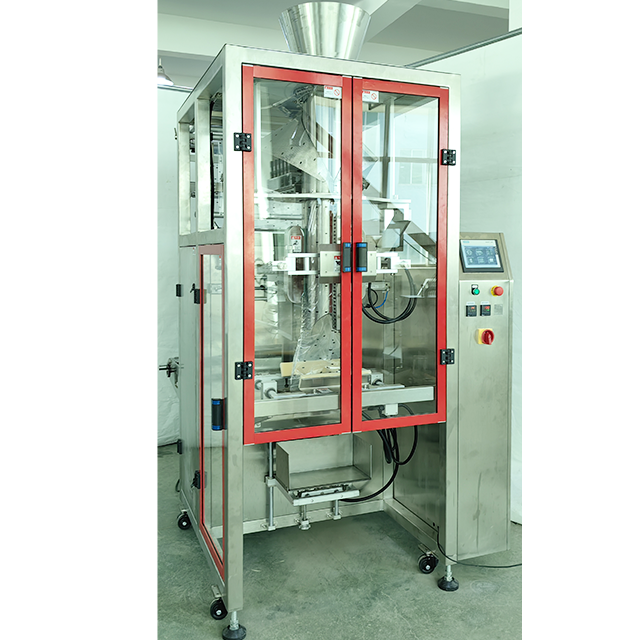

PM-420-520-620-720 Large Fin Seal Packaging Machine is a high-quality, high-performance fully automatic packaging machine with the characteristics of easy operation, high production efficiency and wide application range.
This equipment can complete a series of automatic functions such as automatic feeding, metering, bag making, filling, sealing, printing date and finished product output. It is mainly suitable for packaging powders, liquids, pastes and granular products. The product has high sealing strength, strong reliability, smooth and beautiful appearance. It is an ideal packaging machine for food, medicine, cosmetics and fine chemicals.
Standard Features
1.The whole machine shell is made of SUS304 stainless steel which meets GMP standards.
2.The power adopts servo heat-sealing film pulling, which is stable, reliable and high-precision.
3.Highly sensitive color mark electric eye can automatically track and locate the printing cursor, and when packaging materials with color marks, a complete trademark pattern can be obtained.
4. PLC used Siemens, Panasonic, Mitsubishi, Schneider and Inovance system control, cooperates with human-machine interface KINCO. Inovance, Siemens, and Schneider touch screen which can easily set and adjust packaging parameters on the control panel. It can intuitively display production information and has functions such as fault self-alarm and automatic shutdown, which is safe and simple to use and easy to maintain.
5.PID digital display intelligent temperature control YUDIAN, OMRON, precise temperature control, beautiful sealing, temperature deviation ±1℃.
6.The main pneumatic components used AirTAC, SMC and Festo brands which with long service life and easy maintenance.
7.The electrical components of the whole machine use well-known brands, it can meet various safety certifications of CE, CSA and CUL.

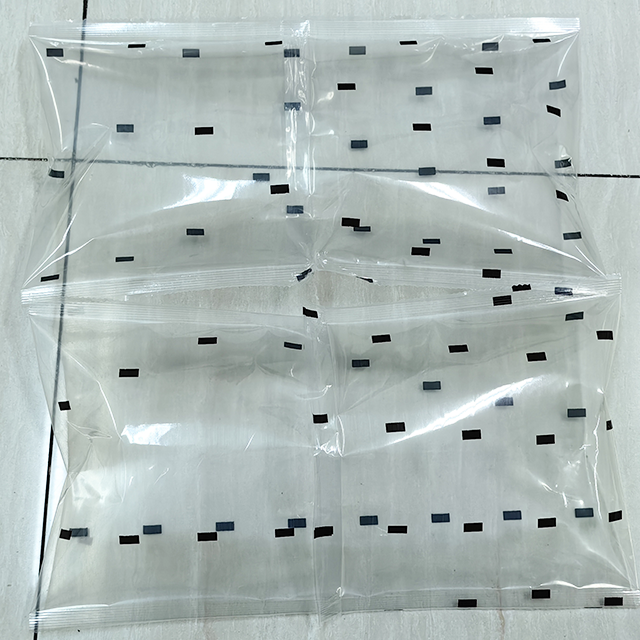

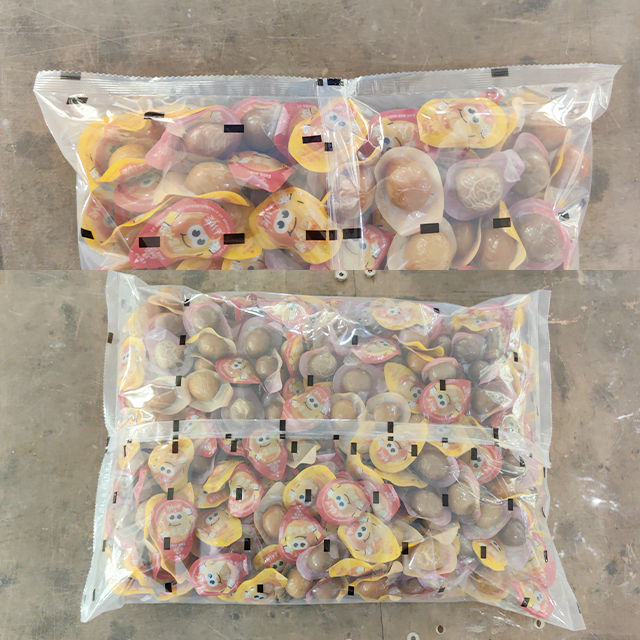

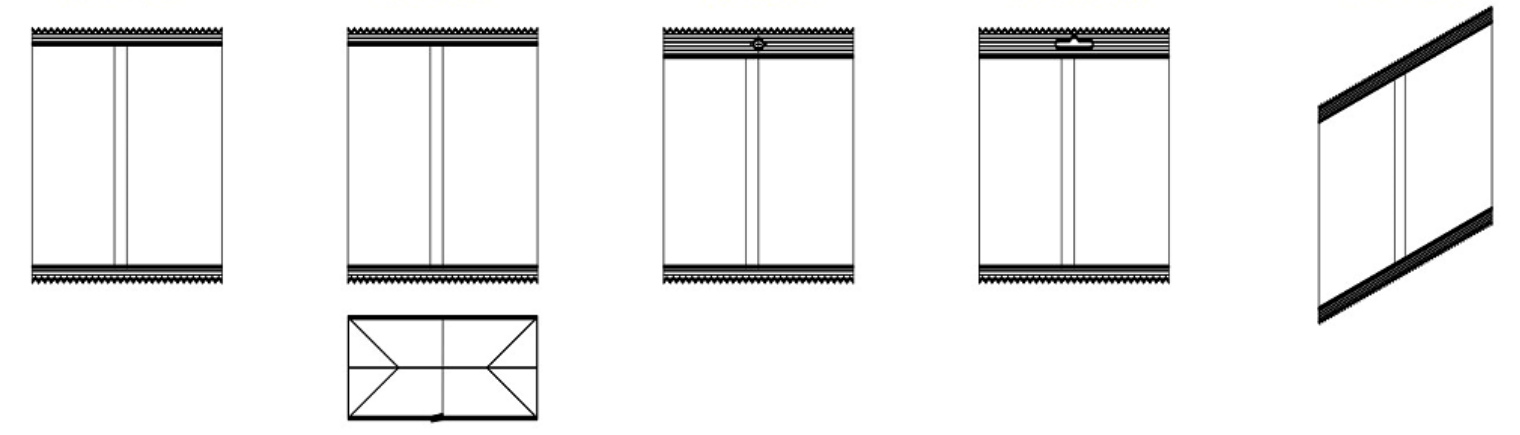

From left to right
Photo 1：Standard fin seal
Photo 2：Standard gusset pouch forming
Photo 3：Standard round hole
Photo 4：Standard aircraft hole
Photo 5：30 degree inclined fin seal
Technical Specification
Model | PM-720 | PM-620 | PM-520 | PM-420 |
Max. Capacity(ml) | 4000 | 3000 | 2000 | 1000 |
Bag Length(mm) | 200-500 | 120-450 | 80-390 | 80-390 |
Bag Width(mm) | 150-350 | 110-300 | 90-250 | 80-200 |
Film Width(mm) | 320-730 | 240-630 | 200-530 | 180-430 |
Wrapping Speed(ppm) | 10-35 | 10-45 | 15-50 | 15-60 |

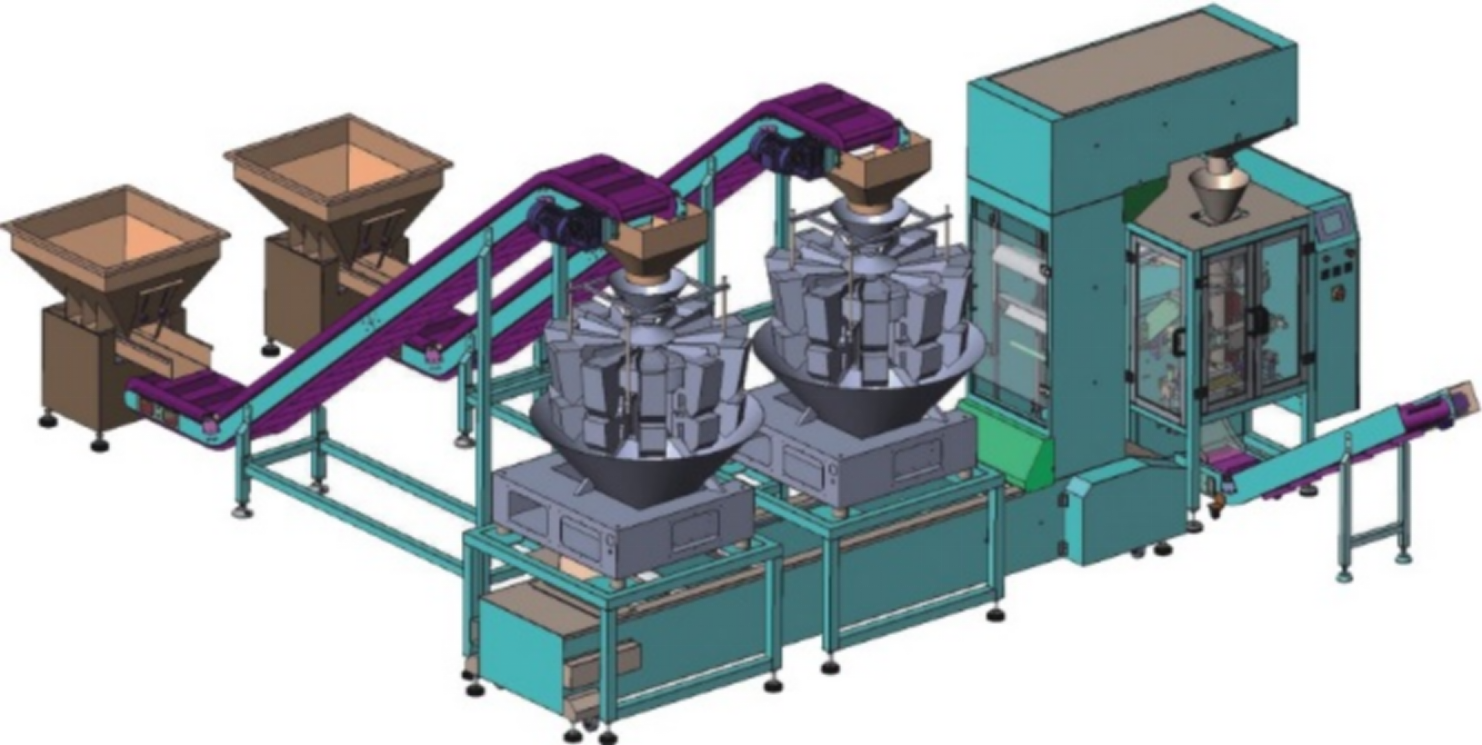

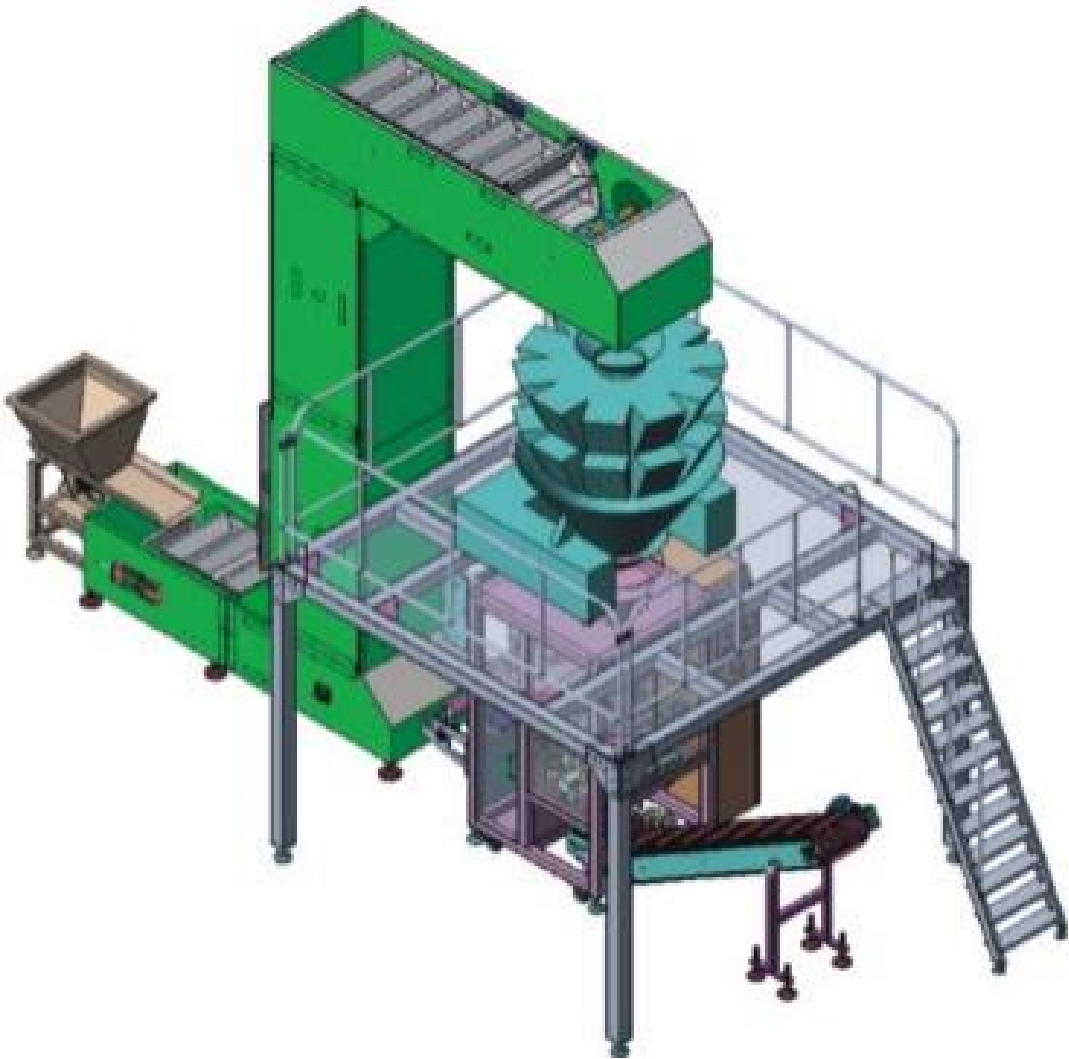

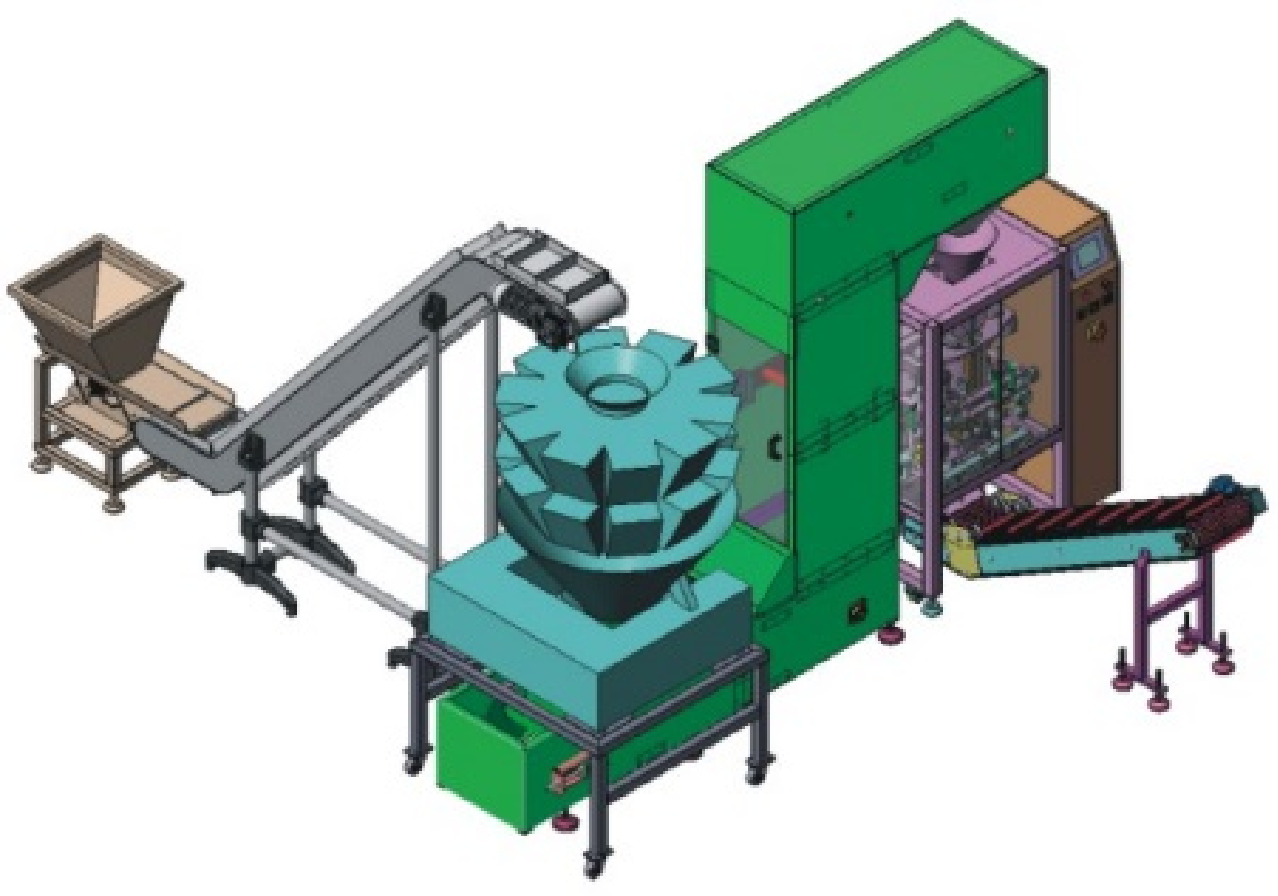

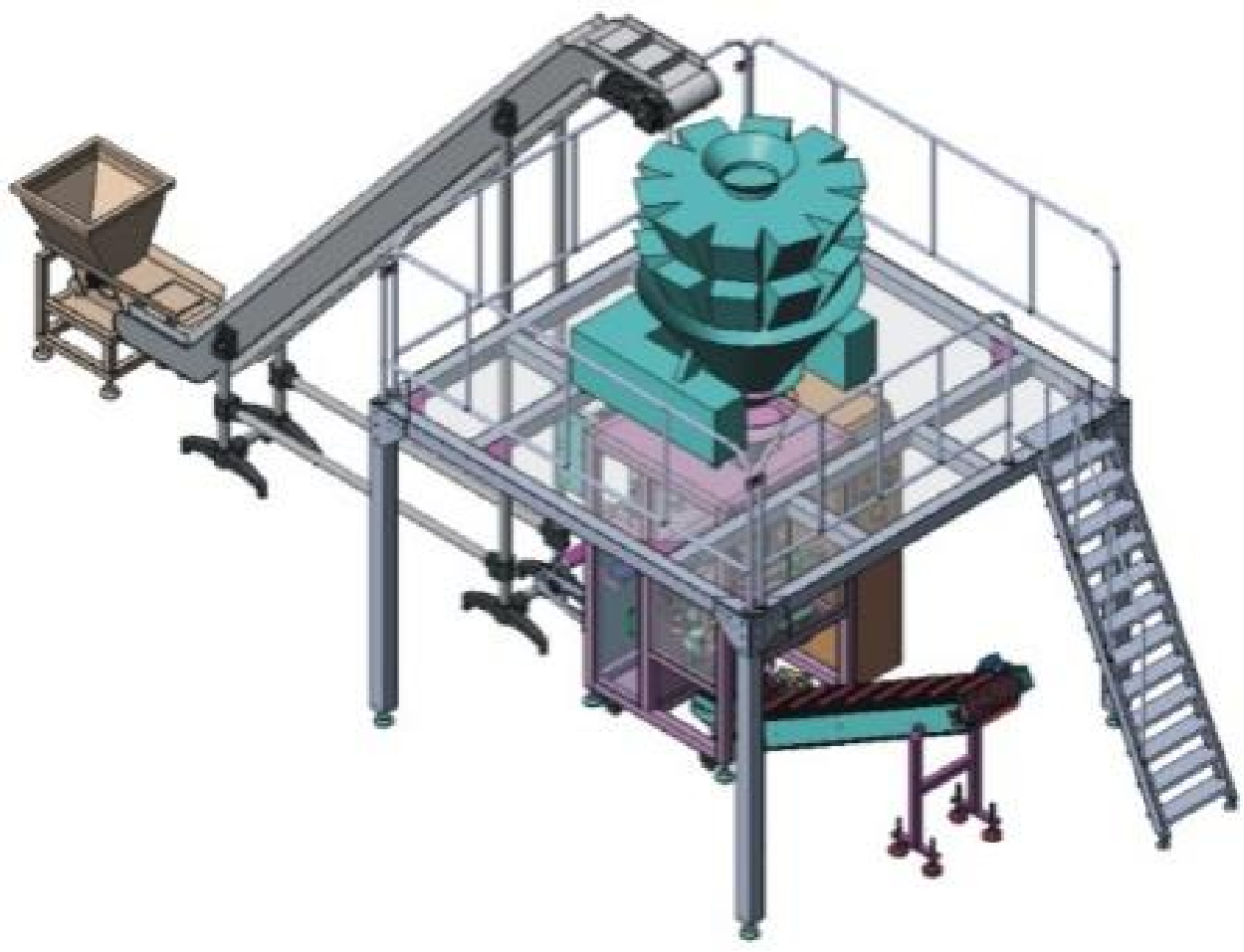

Supporting Project Drawing
