Application

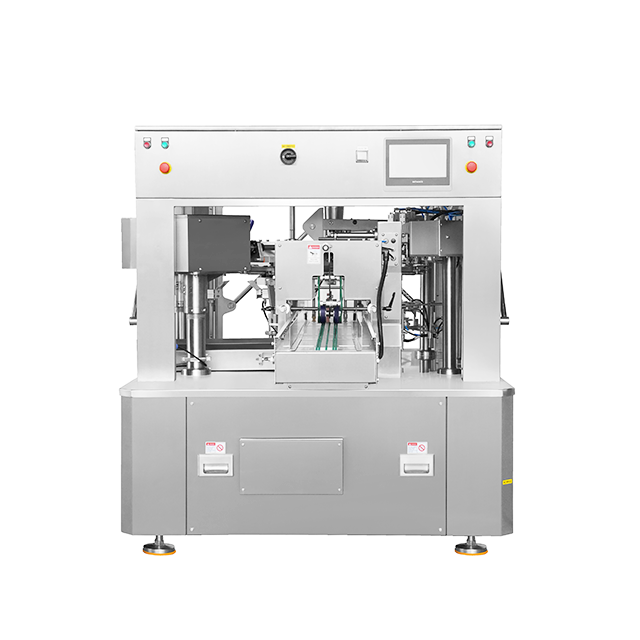

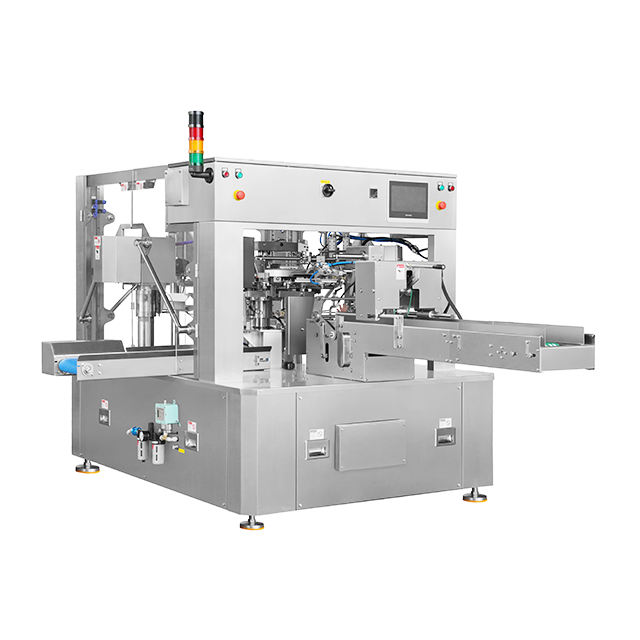

AP-8BT(VII) is designed for premade pouch packaging application, suitable for flat pouch, doypack, stand-up pouch, zipper pouch, side spout pouch, gusset pouch packaging. Mix-match various dosing unit, it could be filled the related products.
Standard Features
1. Panasonic PLC + 10”Inovance Touch Screen.
2. Bag Infeed Conveyor.

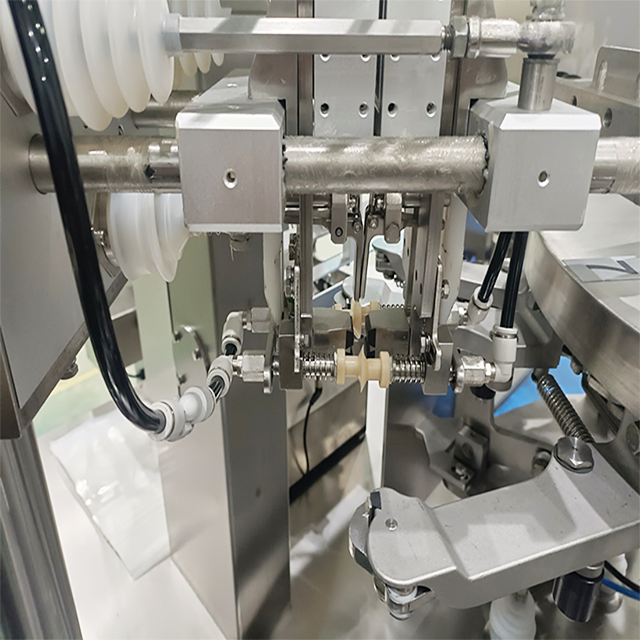

3. Bag opening blade with full opening detector.
4. P.I.D. temperature controller.
5. #304 Stainless Steel Construction.
6. Graphical color touch panel.
7.Discharge conveyor.
Technical Specification
Model No. | AP-8BT(VII) |
Pouch Size(Length) | 130-350mm |
Pouch Size(Width) | 100-250mm |
Speed | 30-75pcs/min(With zipper30-55pcs) |
Voltage | 380V/3Phase,50Hz |
Power | 5kw |
Air Consumption | 190L/min |
Overall Dimension | L3021.5*W2006*H1685mm |
