APHS-140

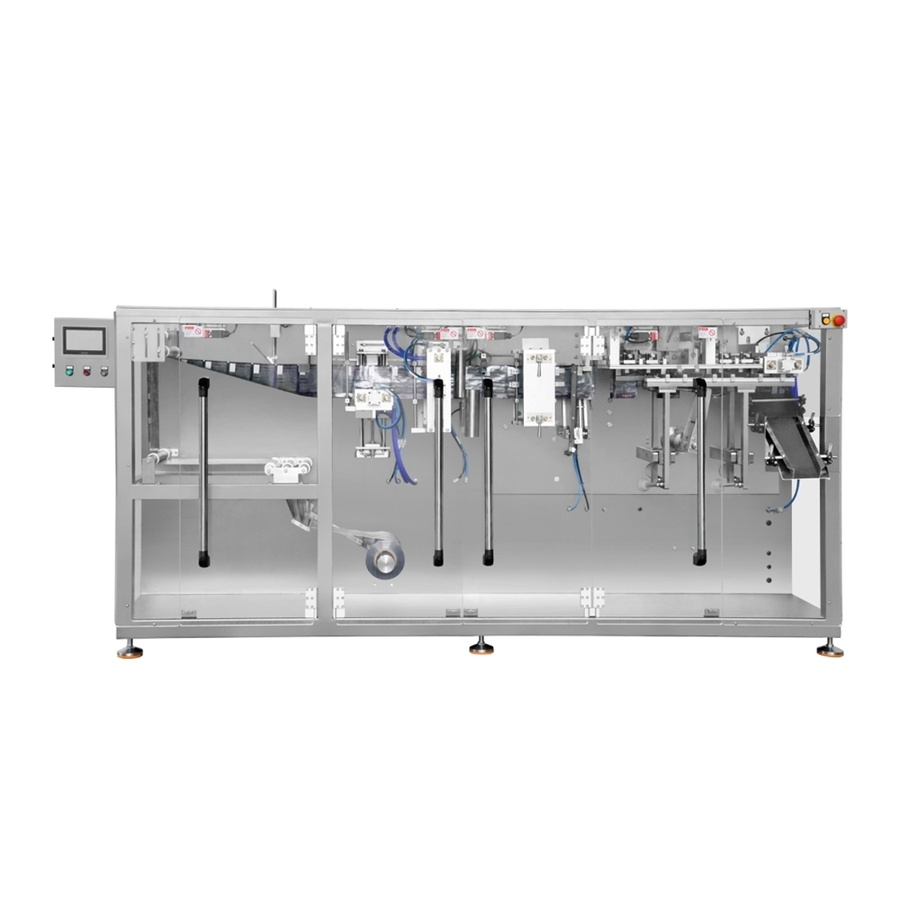

HORIZONTAL FORM FILL SEAL PACKING MACHINE FOR FLAT POUCH
APHS-140 is suitable for packaging materials with various heat-sealable multi-layer composite films. It is a fully automated production equipment that automatically completes the packaging processes such as forming, bag making, metering, filling, and sealing. Different types of filling machines can be used to package different products, such as powder, paste, granules, liquid, ds, etc.
COMPLIANCE WITH CE & UL STANDARDS
ALL MAJOR PARTS USE INTERNATIONAL BRANDS
Product Parameters
TECHNICAL PARAMETERS | |
Product Name | Horizontal Form Fill Seal Packing Machine for Flat Pouch |
Keywords | Packing Machine |
Model No | APHS-140 |
Pouch Size(Length) | 90-220mm |
Pouch Size(Width) | 60-140mm |
Speed | 30-50pcs/min |
Voltage | 380V/3Phase,50/60Hz |
Power | 3kw |
Air Consumption | 130L/min |
Overall Dimension | L3132*W1217*H1408mm |
OEM & ODM Custom | Accept |
LOGO Custom | Accept |

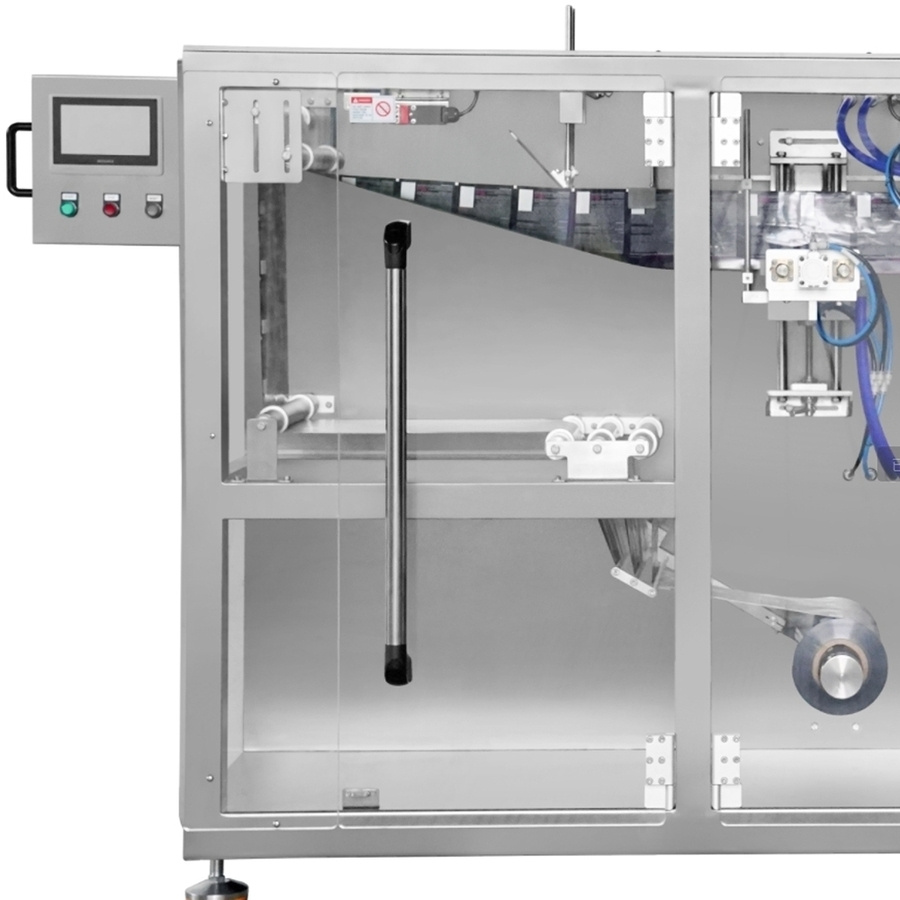

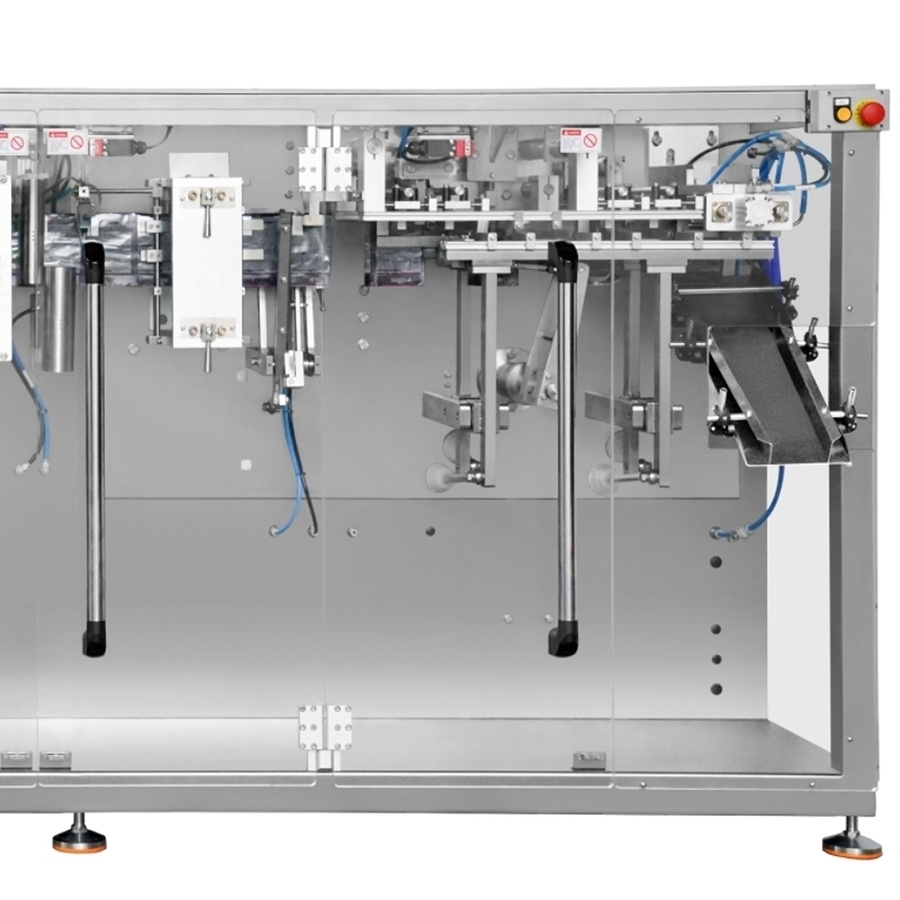

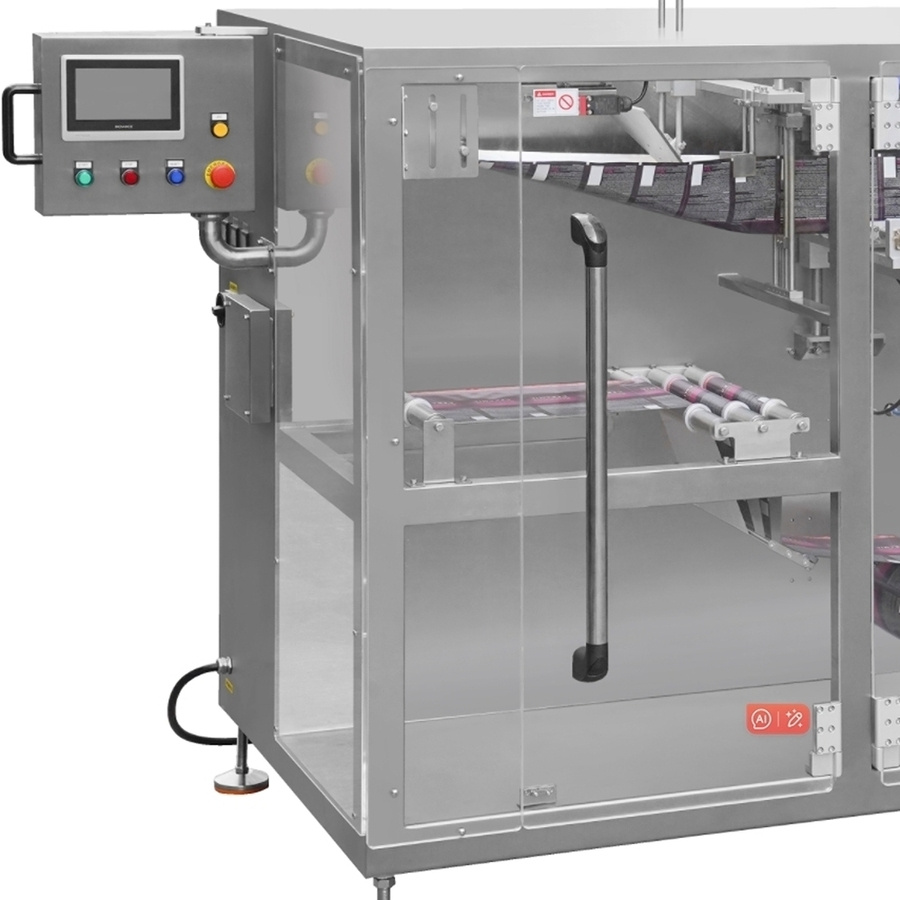

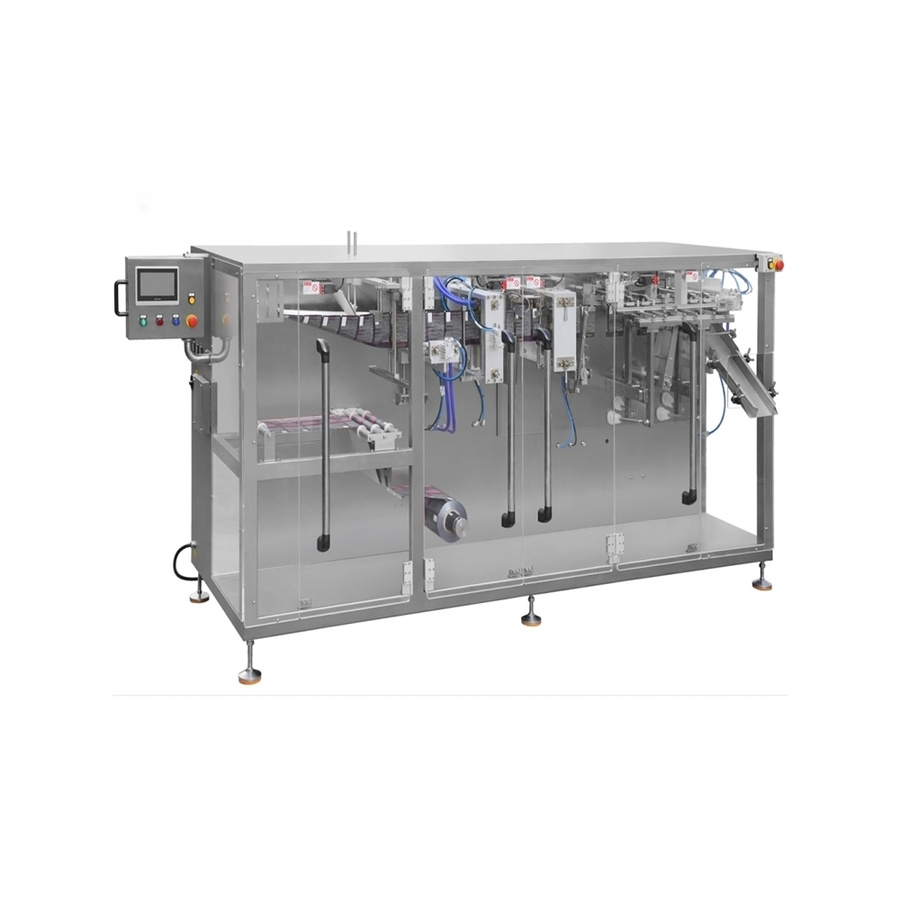

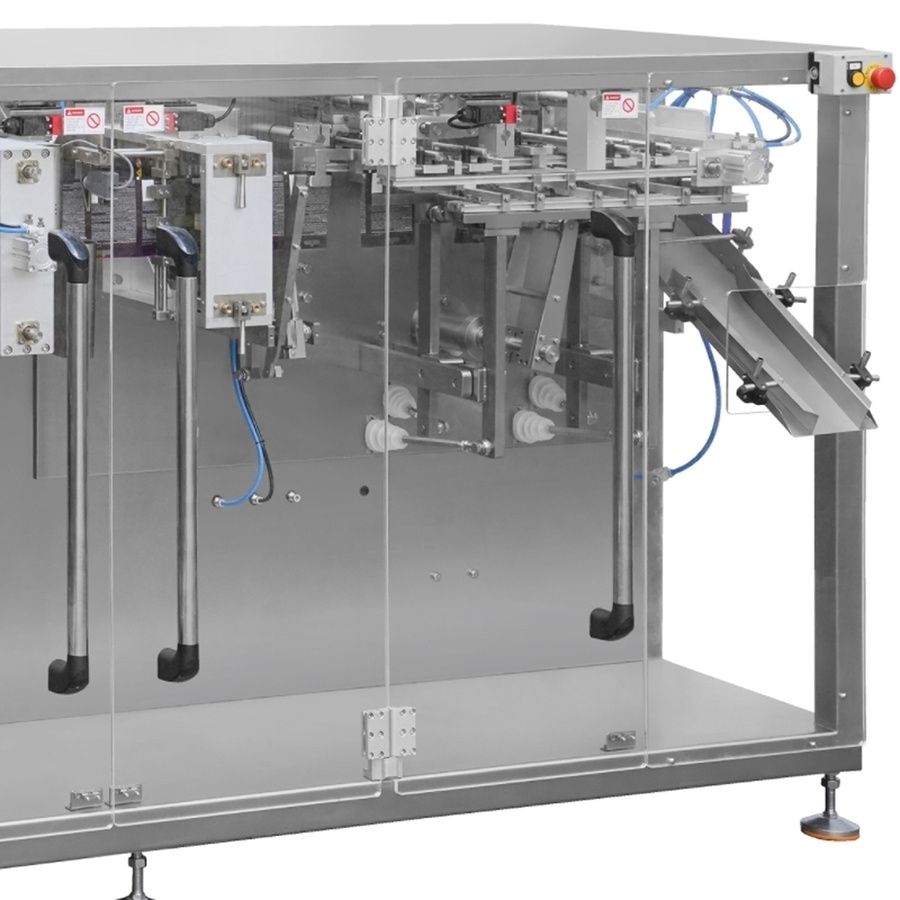

Detailed Photos
STANDARD FEATURES
1. Used linear design, simple and convenient operation.
2. Inovance control system with stable performance.
3. The main moving parts use mechanical transmission.
4. Used the sinking filling mechanism.
5. Intelligent bag detection.
6. Different filling devices according to the filling material.
7. SUS304 stainless steel and meet GMP standard.
8. Intelligent temperature control system.
