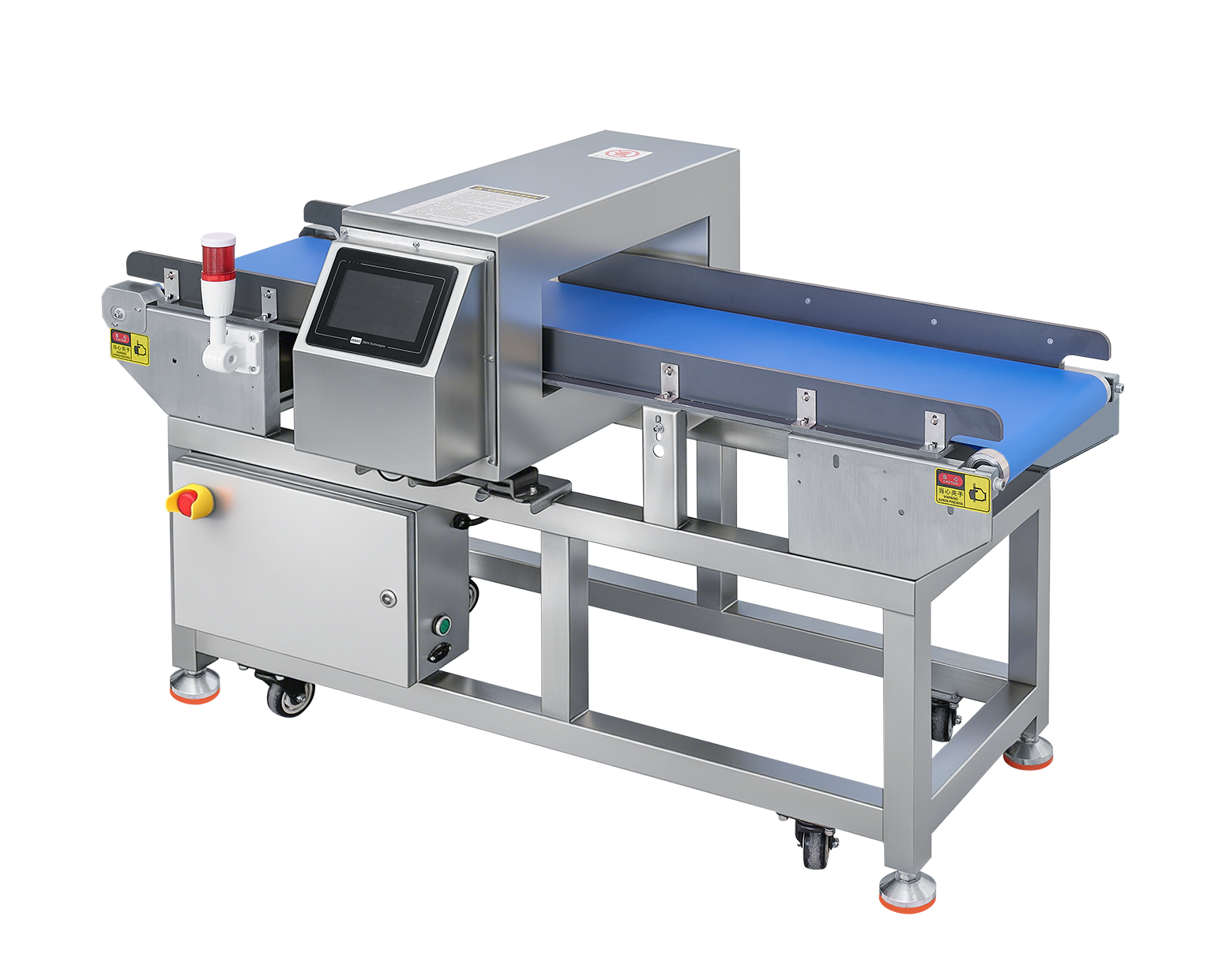

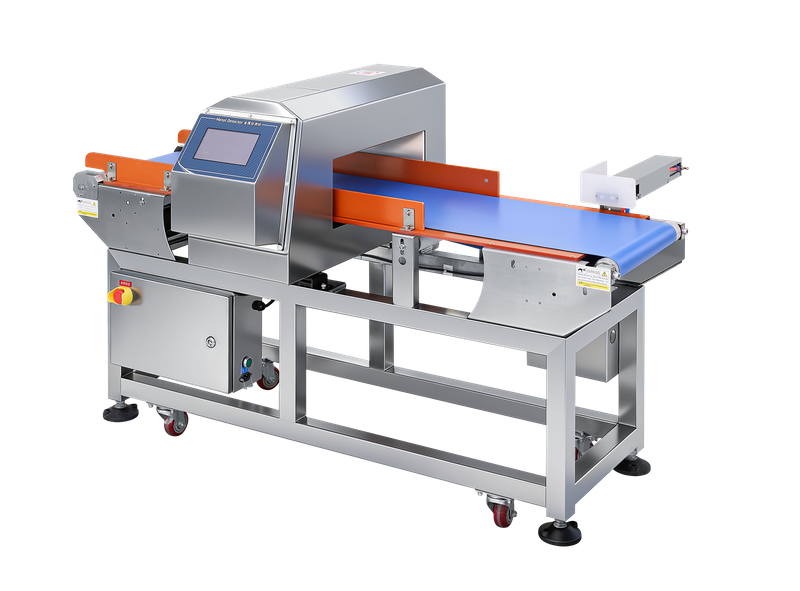

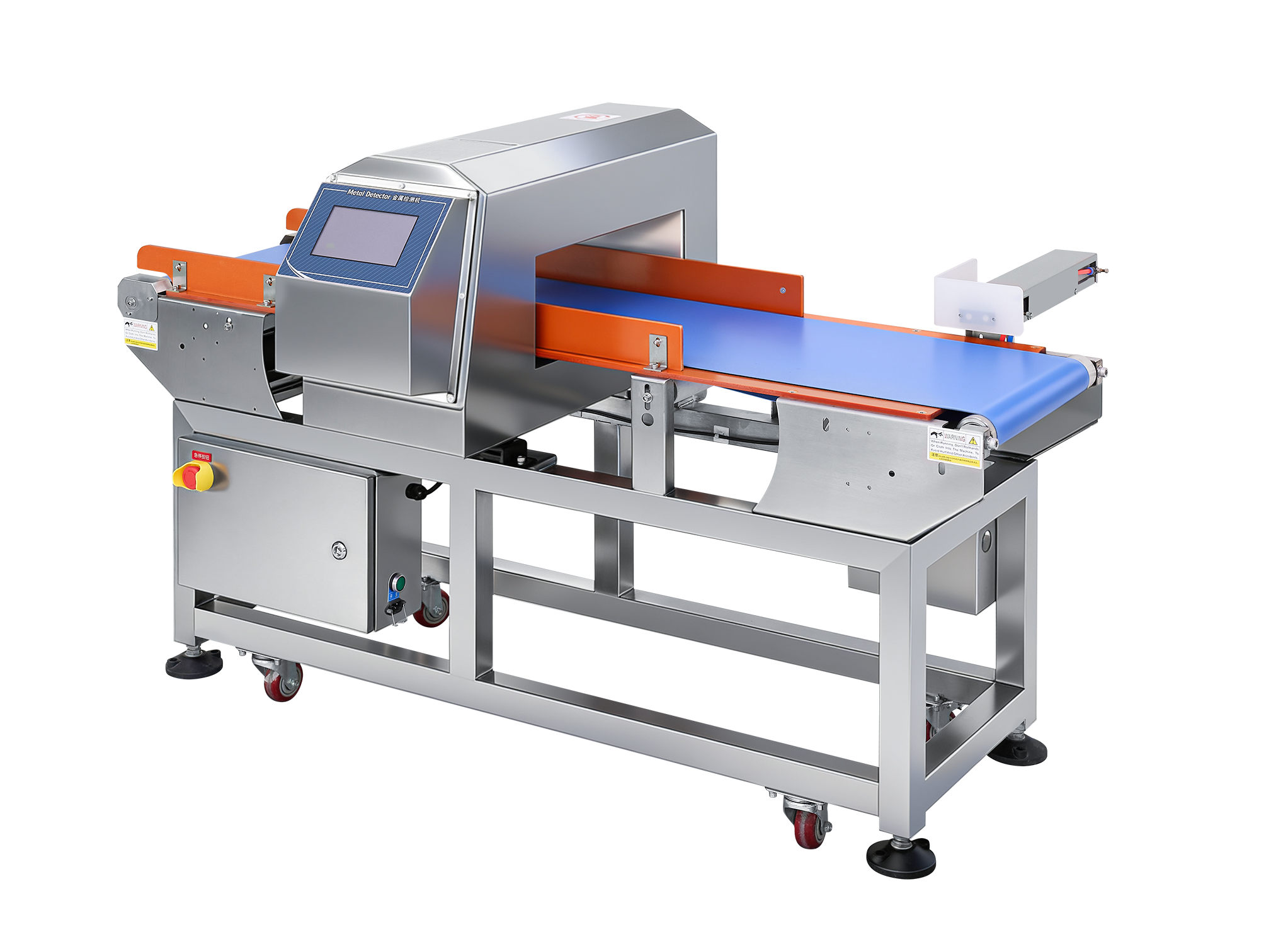

APMD-5010
360° all-around inspection
Supports non-standard customization
Compatible with production lines
Customizable rejection methods
Equipment functions customized to product specifications
Inspection accuracy up to 0.1mm
Detects all metals including iron, copper, aluminum, and stainless steel
Suitable for metal detection in various automated production lines. It can automatically reject detected metal foreign objects without stopping the machine. Widely used in online metal foreign object detection in industries such as food, toys, home textiles, and daily chemicals. Product testing styles are suitable for bulk, bagged, bottled, boxed, and cartoned products.
Model No. | APMD -3010 | APMD -4010 | APMD -5010 |

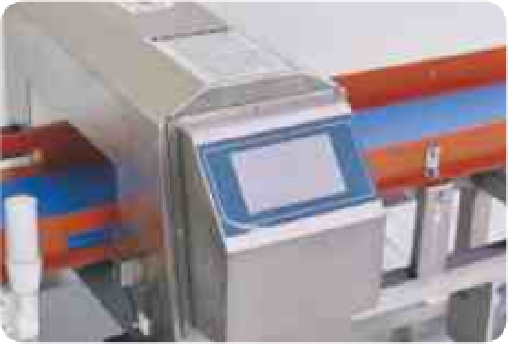

human-computer interface | 7-inch TFT touch screen | 7-inch TFT touch screen | 7-inch TFT touch screen |

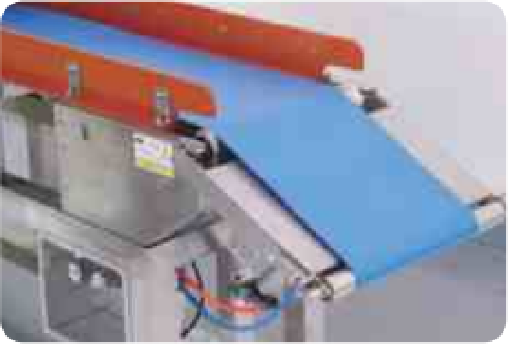

belt size | 1 600mm*300mm | 1600mm*400mm | 1600mm* 500mm |
Channel height | 100 (customizable) | 100 (customizable) | 100 (customizable) |
Detection accuracy | Iron 0.8, Copper 1.0, Stainless Steel 2.0 | ||
velocity | 20-30 meters/minute | ||
detection mode | electromagnetic wave | ||
Rejecter Method | 1. pusher2.Air blast3.drop4.Alarm Stop Machine | ||
Power | 220V 、50/60HZ | ||
